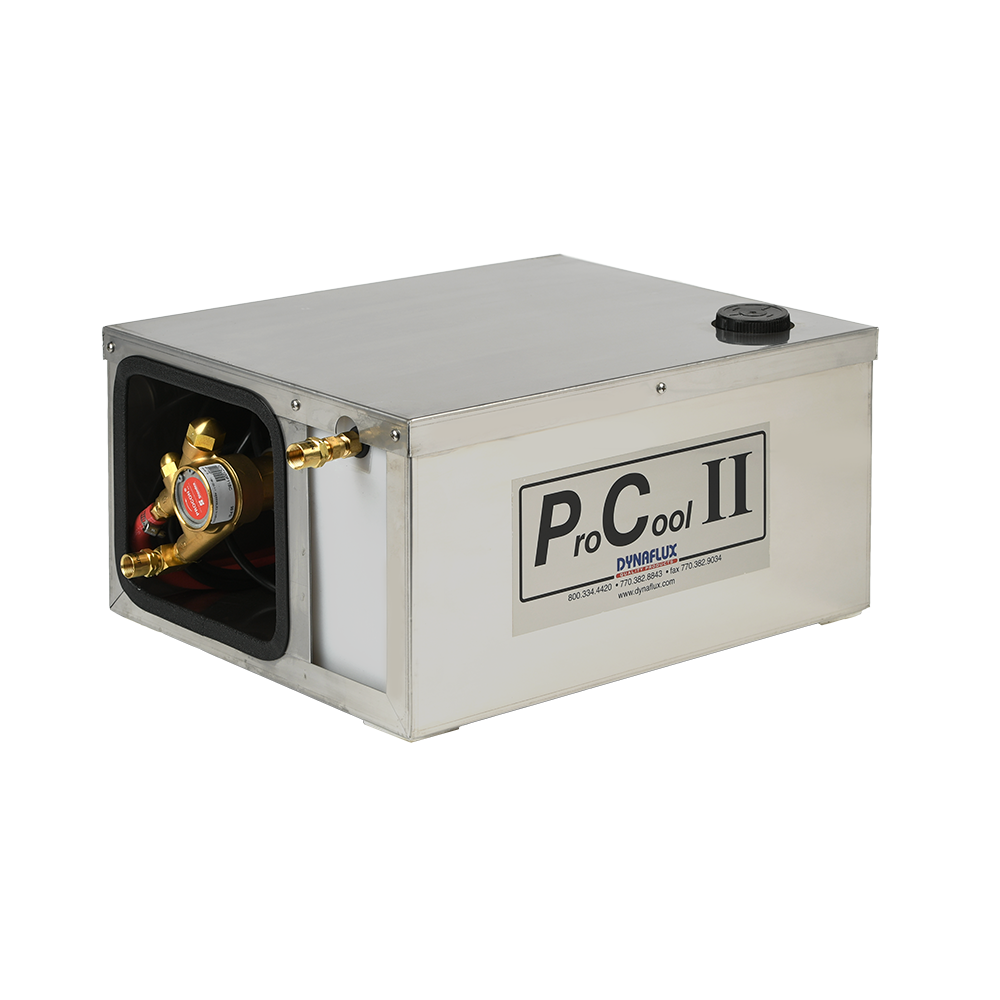

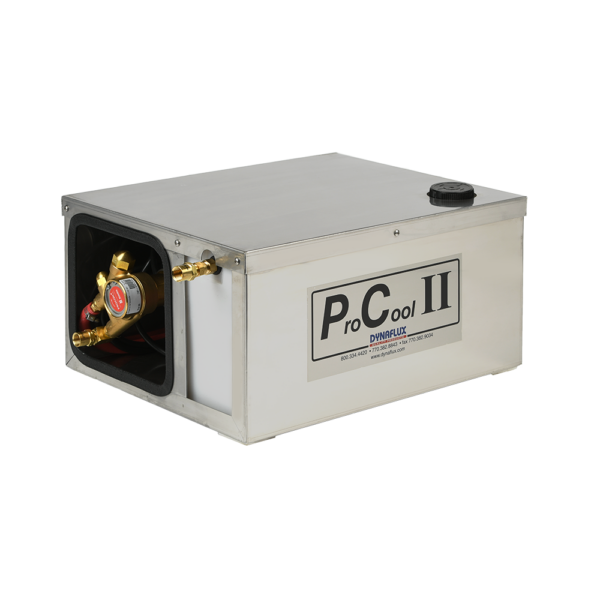

Procool PC2 V/G Cooling System

///Procool PC2 V/G Cooling System

Procool PC2 V/G Cooling System

Specifications

  • Factory set at 50 psi adjustable to 80 psi
  • 3 gallon reservoir
  • 115 or 230 VAC / 1 ph-50/60Hz
  • 5.6 / 2.8 amp:60 Hz
  • 12,000 BTU
  • Dimensions: 18″L x 14″W x 9″H
  • Net weight: 37 lbs / 17 kg
  • Foam packed for UPS shipment

PCIIG: Rotary GEAR Pump

  • 1.8 gpm at 50 psi
  • Built in by-pass to tank

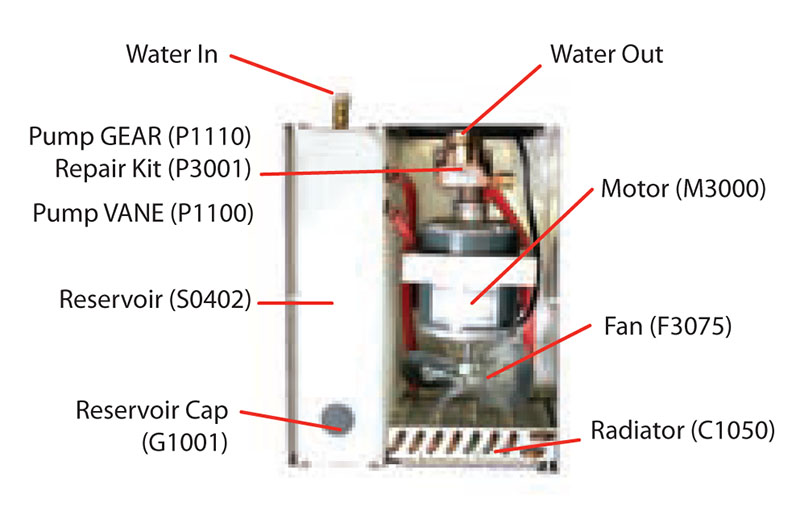

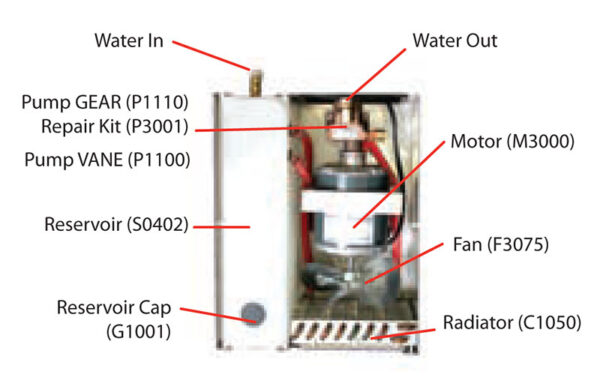

  • Rebuildable Pump (Repair Kit Product No. P3001)

PCIIV: Rotary VANE Pump
1.7 gpm at 50 psi

System Features

  • Plastic water tank eliminates coolant contamination due to electrolysis or chemical reactions.
  • All units are plumbed with copper tubing and reinforced hose.
  • New extended life pump features a direct drive power system reducing maintenance and vibration.
  • No external plumbing is required because of closed loop water system.
  • Self priming pump
  • Easy change pump
  • Strong rigid construction designed to support power unit.
  • Compact design
