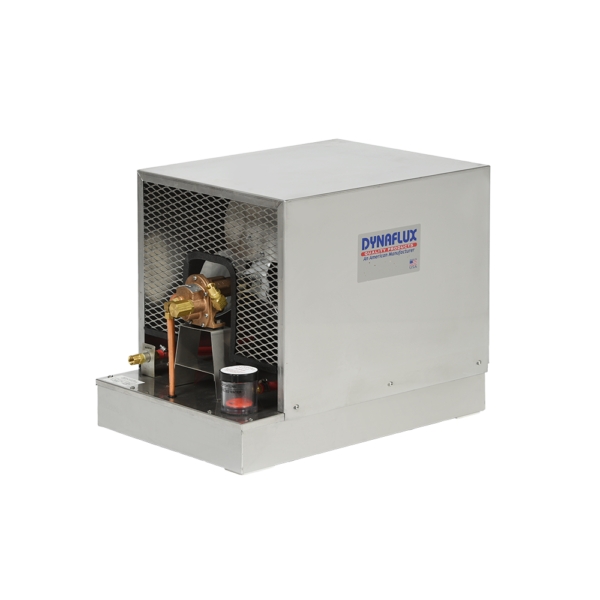

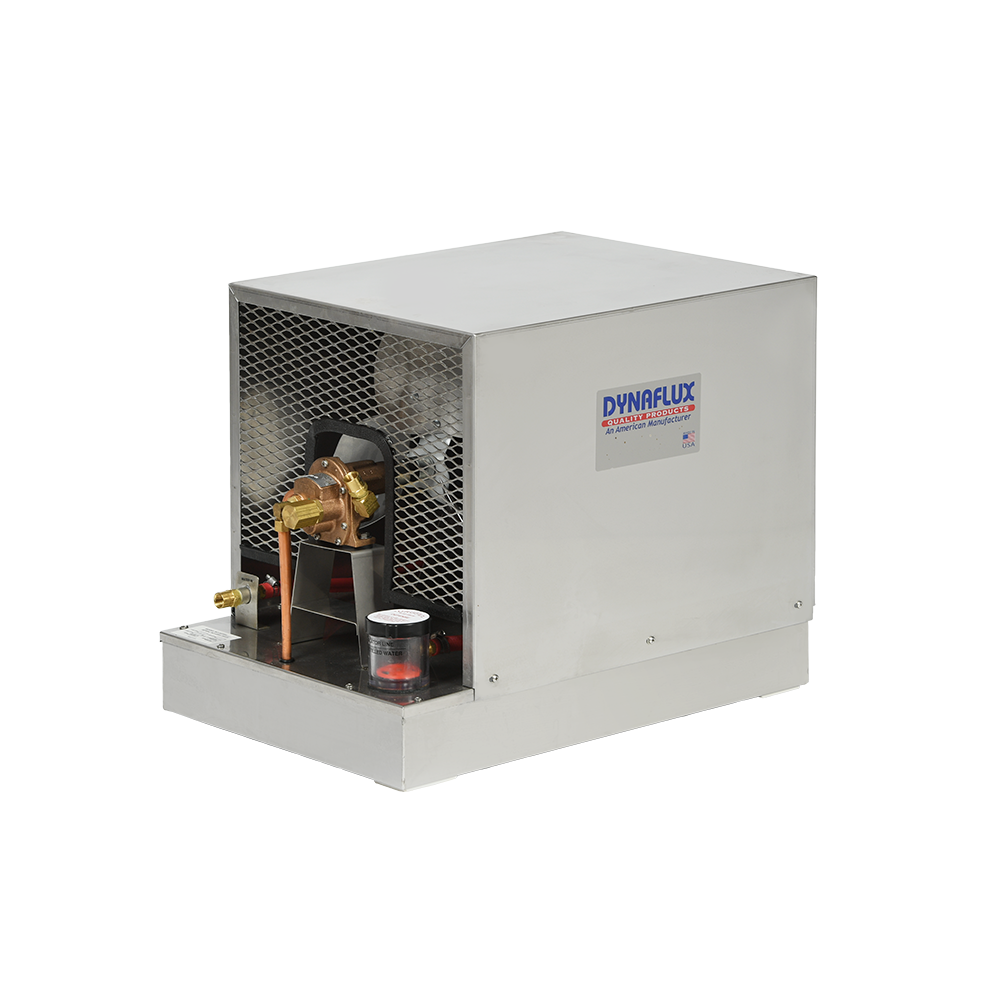

R2000 Cooling System

///R2000 Cooling System

R2000 Cooling System

Specifications

  • Factory set at 50 psi adjustable to 100 psi
  • 6 gallon reservoir (15 gallon available)
  • 115 VAC 50 / 60 Hz 1 ph
  • 230 VAC 50 / 60 Hz 1 ph
  • 13.4 / 6.7 amp:60 Hz 1 ph
  • 230 / 190 VAC 50 / 60 Hz 3 ph
  • 460 / 380 VAC 50/60 Hz 3 ph
  • 2.6 / 1.3 amp:60 Hz3 ph
  • 30,000 BTU
  • Dimensions: 23″L x 16″W x 19.5″H
  • 1/4″ FPT (water in / out) with 5/8″ LH Standard Inert Gas Fitting
  • 8 foot power cord. 1 ph only
  • Visible water level / water flow sight glass
  • Thermal overload
  • Net weight: 68 lbs/31 kg
  • Foam packed for UPS shipment

R2000: Rotary GEAR Pump (only)

  • 3.5 gpm at 50 psi
  • Built in by-pass to tank
  • Rebuildable Pump (Repair Kit Product No. P2001)

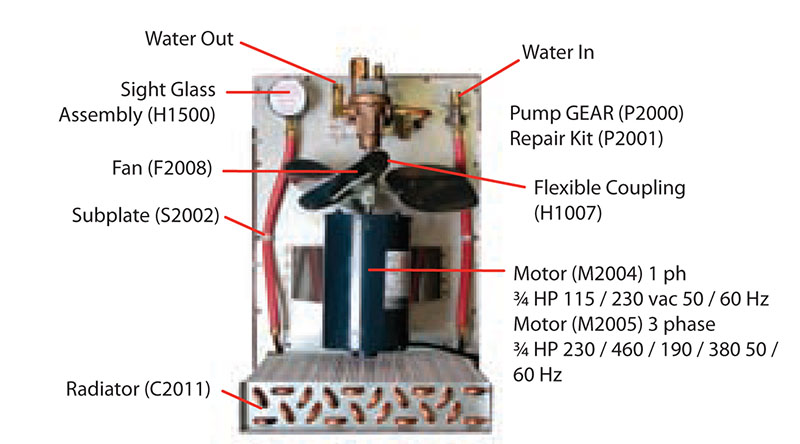

System Features

  • Stainless steel construction eliminates coolant contamination due to electrolysis or chemical reactions.
  • All units are plumbed with copper tubing and reinforced hose.
  • New extended life pump
  • No external plumbing is required because of closed loop water system.
  • A water level float gauge and filler cap are combined in a single unit multi-purpose sight glass which enables operator to observe return water at a distance.
  • Water filter on pump inlet protects pump and extends pump life.
