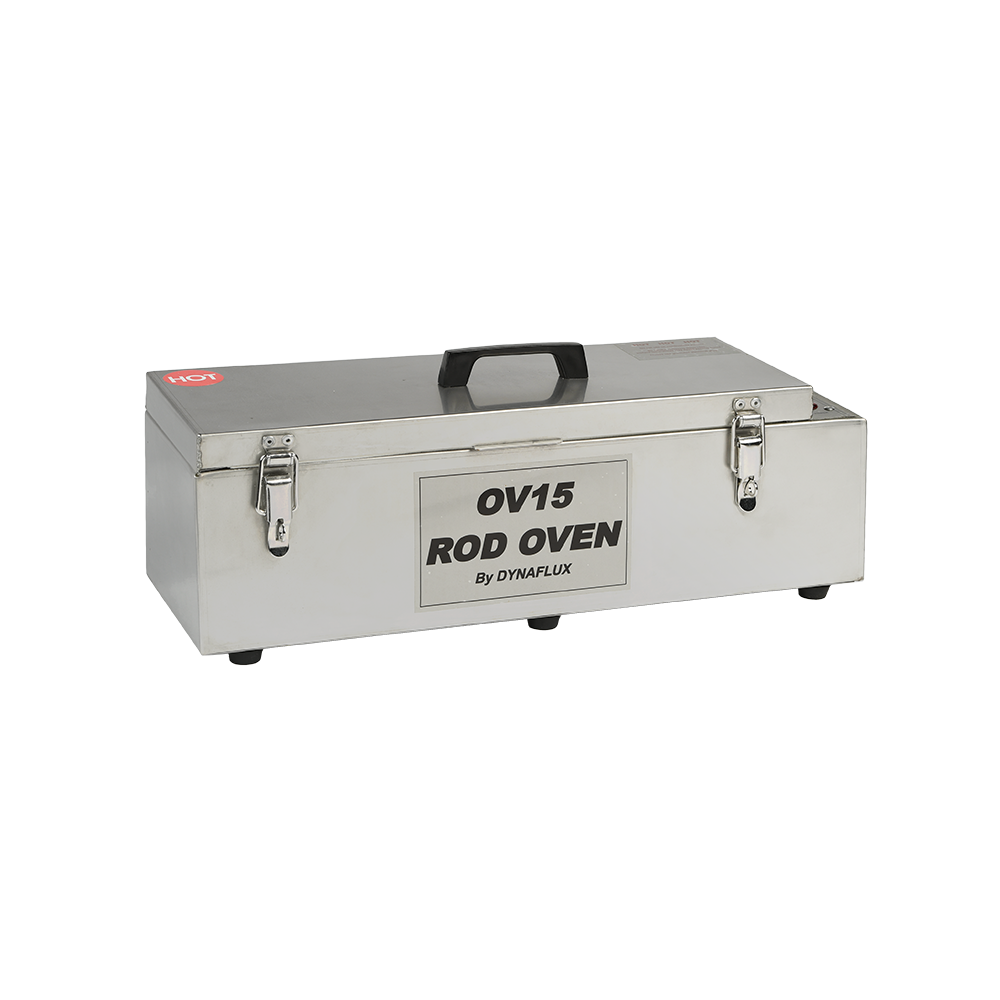

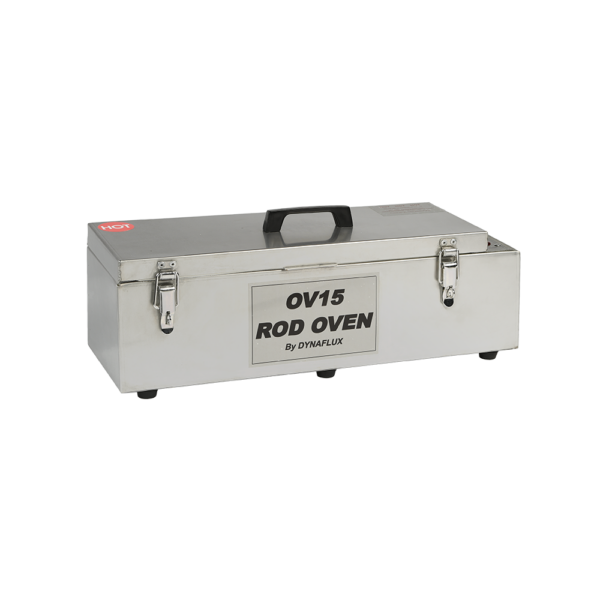

These energy efficient horizontal rod ovens are housed in durable stainless steel. The high R value ceramic insulation holds heat longer, extending field use. Placement of the heating element below the rods creates even heat distribution, increasing energy efficiency. Gasket sealed lid ensures an air tight seal to keep moisture out and heat in. Hinged cover allows for single handed retrieval of welding rods without glove removal. Replacement of heating element is quick and easy by removing six accessible screws.

Rod ovens are available in 15 lb. (6.8 kg.) and 50 lb. (22.7 kg.) capacities.

Voltage (AC): 115 V
Electrode Capacity: 15 lbs. (6.8 kg), 18″ (45.7 cm) Max Rod Length
Temperature Range: 100 – 300 ºF, 38 – 150 ºC
Thermostat: Adjustable
Illuminated Power Indicator Light: Yes
Exterior Cabinet: Stainless Steel
Interior Construction: Stainless Steel
Insulation: 1″ (2.54 cm) Thermal Ceramic
Interior Dimensions: (L x W x H): 19 x 5 1/2 x 3 in
Exterior Dimensions: (L x W x H): 23 x 7 3/4 x 7 3/4 in
Shipping Weight: 20 lbs, 9 kg
