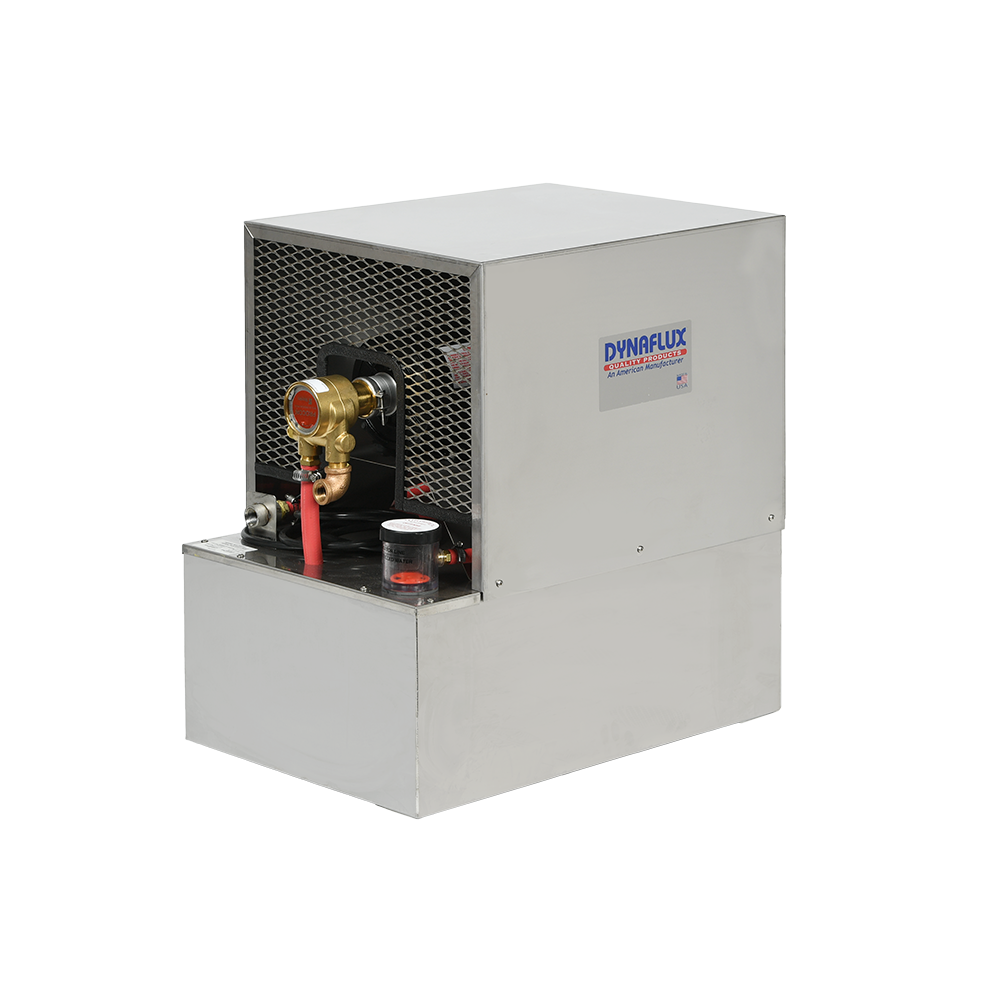

R2200 V Cooling System

Specifications

  • Factory set at 50 psi adjustable to 100 psi
  • 15 gallon reservoir (6 gallon available)
  • 115 or 230 VAC / 1 ph-50 / 60 Hz
  • 8.2 / 4.1 amp:60 Hz
  • 30,000 BTU
  • Dimensions: 23″L x 16″W x 25.5″H
  • 1/2″ FPT fittings-water in and out
  • 8 foot power cord
  • Visible water level and water flow sight glass
  • Net weight: 70 lbs / 32 kg

R2200 V: Rotary VANE Pump
4.0 gpm at 50 psi

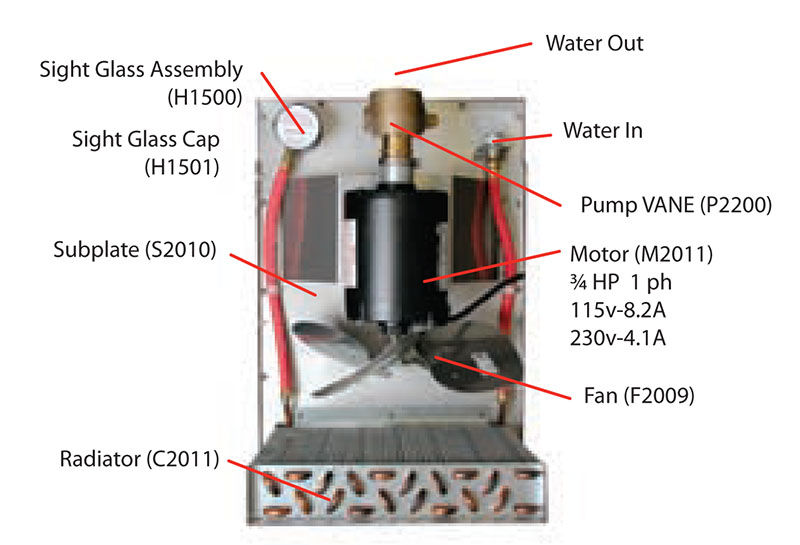

System Features

  • Stainless steel construction eliminates coolant contamination due to electrolysis or chemical reactions.
  • All units are plumbed with copper tubing and reinforced hose.
  • New extended life pump.
  • Air flows into patented high efficiency radiator first for maximum efficiency.
  • No external plumbing is required because of closed loop water system.
  • A water level float gauge and filler cap are combined in a single unit multi-purpose sight glass which enables operator to observe return water at a distance.
  • Water filter on pump inlet protects pump and extends pump life.
